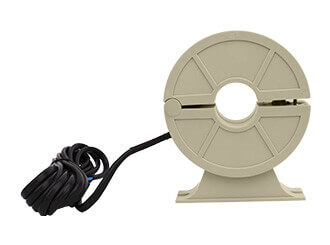

FU-32 Clamp On CT

The FU-32 is an indoor clamp-on split core current transformer. The manufacturer's category page lists 700g weight, 32mm core, 60 to 600A at 5A or 1A. A shop parameter table for the same model gives nominal primary currents 100, 150, 200, 300, 400, 500 and 600A, ratio 400:5 or 200:5 (customizable), accuracy 0.2%, 0.5% or 1%, system voltage 720V, output 10mA to 200mA AC or 333mV AC or 100mV to 2V, frequency 40 to 500Hz, dielectric strength 3kV at 50/60Hz for 1 minute, standard 2.5m cable, CAT II or CAT III 600VAC, maximum jaw opening 32mm, dimensions 110 x 130 x 41mm, weight 700g, operating minus 25C to plus 55C, 0 to 85% relative humidity non-condensing, and altitude below 3500m. These shop figures are stated here as the shop listing's figures.

Applications listed for this model include energy sub-metering, power meters, power quality monitoring, HVAC and pumps, and distributed measurement.

Item and specification

How to select

Choose the FU-32 when an indoor clamp-on CT with a 32mm jaw is needed for sub-metering or power quality monitoring. Check the conductor diameter against the 32mm jaw, the primary current against the nominal list, the output type against the meter or monitor input (current, millivolt or voltage output), and the accuracy class against the measurement use.

Before payment, confirm the model, the jaw size, the ratio, the output type, the quantity, and the delivery terms. Ask for the current datasheet to be confirmed in writing before ordering. No price, minimum order or lead time figure is stated here; confirm each in writing with your inquiry.
